Today our last try to lift our robot has failed again. We begin to be pessimistic about our success.
Indeed, our main idea was to use two arms with two DC motors to lift it.

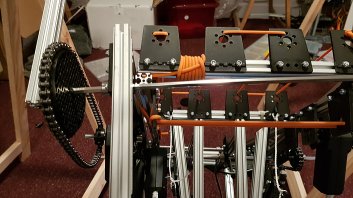

We first tried to move them with a motor and two sprockets linked by a chain.

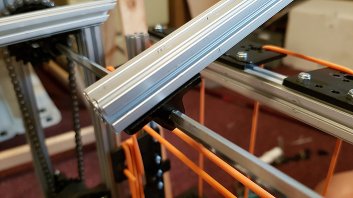

The arms were attached to the long axle with an hex pillow
This structure was too weak to lift our robot (which weights 6.5 kg ), indeed it :
bent the axle, made the axle nearly turn freely in the hex pillow and finaly seemed to damage our motor which sounds weird now !
So we decided to go serious :
The DC motors have a torque of 3.2 N.m , the necessary strength to lift the bot is about 65 N and our arms are 0.4 m long.
Our two motors delivers 6.4/0.4 = 16 N which is not enough.
We have to gear them up.
So did we :

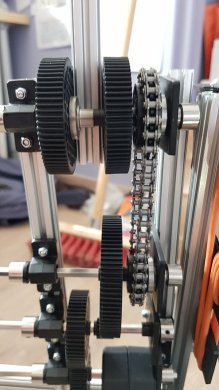

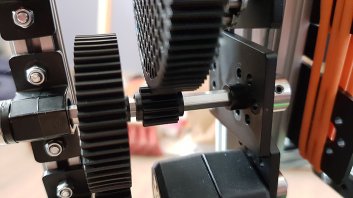

With a total multiplicator of 12 (with gears and sprockets) we had 16*12 = 192 N (theoretically)
But the were still had many problems, especially axle managing to turn in the hex holes

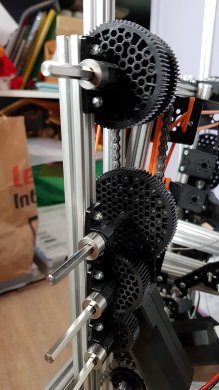

So we tried to strengthen the structure by adding some hex hub adapter but the hex pillow weren’t strengthened, we the decided to attach our arm with two gears as other teams have done.
But this time, the gears in the mechanism cannot handle the weight.
We’ve decided to give up this structure but we haven’t found any other ideas. We will probably try a while to copy the mechanism of Team Oceania (Hi Sue ;) ) but only until friday then we’ll have to concentrate on the rest of the robot and coding and will have to escape from flow by going on the bridge.
